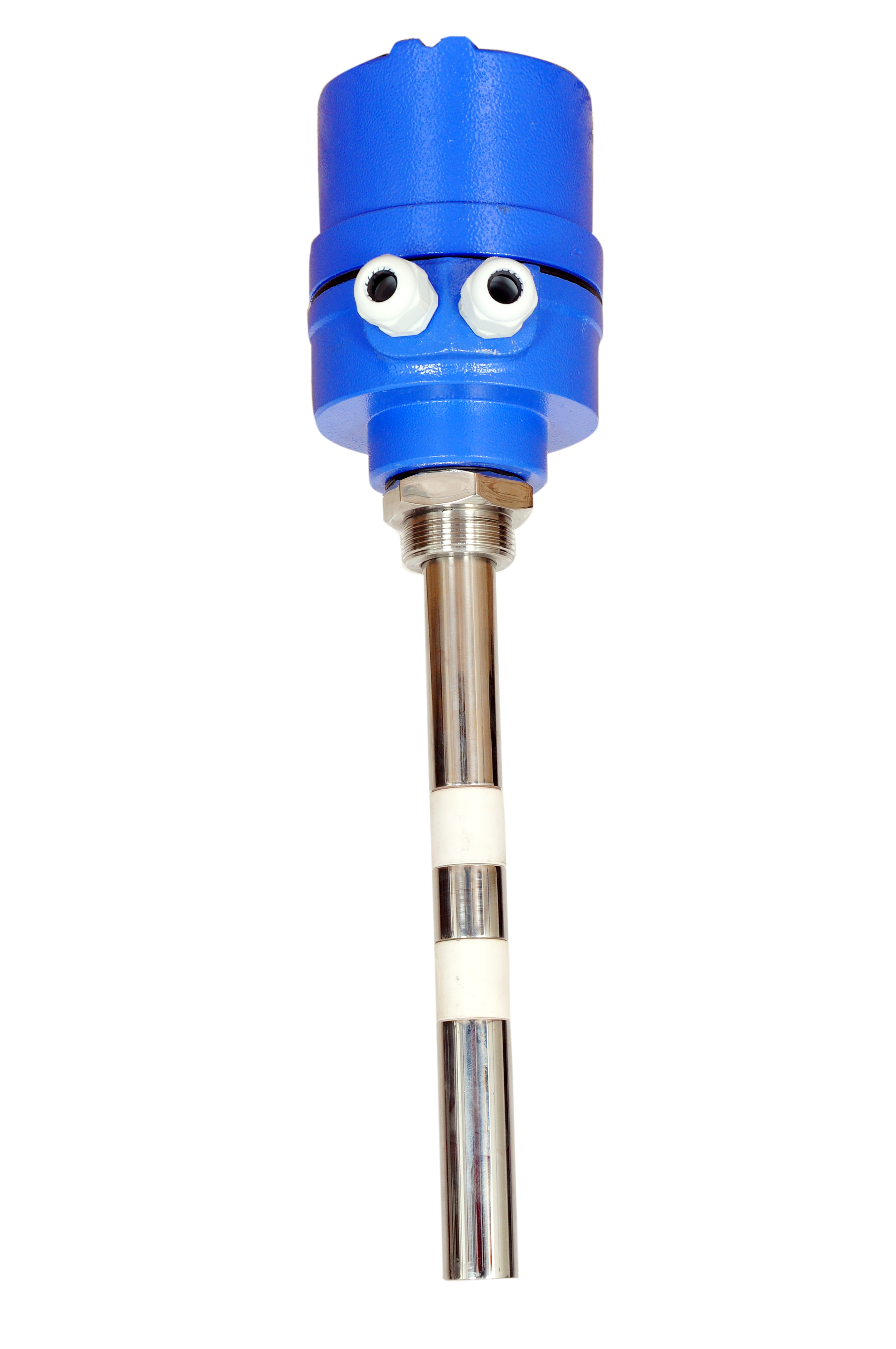

The RF admittance level switch, particularly the HD type, is an advanced device designed for precise liquid level detection in various industrial applications. Utilizing the principle of electrical admittance, these switches can effectively monitor both conductive and non-conductive liquids, ensuring high sensitivity even for small level changes. Their robust design makes them suitable for harsh environments, such as chemical processing and water treatment, where exposure to extreme temperatures and corrosive materials is common. With non-contact measurement capabilities, they reduce the risk of contamination and wear, promoting reliability and longevity.
Adjustable settings allow for customization based on specific application needs, making them versatile tools in industries ranging from food and beverage to pharmaceuticals. Regular calibration and maintenance ensure optimal performance, making the RF admittance level switch an essential component for effective process control.
Liquid Level Measurement: Precise detection in tanks for water, chemicals, and oils.
Bulk Solid Monitoring: Level measurement for powders and grains in silos.
Overfill Prevention: Prevents overflow in storage tanks by detecting high levels.
Dry Run Protection: Monitors pump operation to prevent damage from running dry.
Interface Detection: Identifies interfaces between different liquids, such as oil and water.
Wastewater Treatment: Manages levels in wastewater facilities efficiently.
Food and Beverage: Ensures level control in food processing applications.
Chemical Processing: Ideal for monitoring aggressive chemicals, ensuring safe handling and preventing overflow.
Water and Wastewater Treatment: Accurately maintains water levels in treatment tanks, preventing overflow and dry running.
Pharmaceutical Manufacturing: Maintains precise levels in reactors and storage vessels, enhancing product consistency.
Oil and Gas: Monitors liquid levels in separators and storage tanks to manage inventory and prevent spills.
Power Generation: Ensures reliable monitoring of cooling water and feedwater tanks, enhancing system efficiency.
Pulp and Paper Production: Monitors slurries and chemicals, facilitating optimal resource management.
HVAC Systems: Regulates water levels in condensate tanks, ensuring efficient operation.
HD RF admittance level switches provide high sensitivity and robust performance, enhancing safety and efficiency across various industries.
Operating Principle: RF admittance measurement for liquid level detection.
Measuring Range: From a few millimeters to several meters.
Fluid Compatibility: Suitable for aggressive chemicals, viscous fluids, and slurries.
Temperature Range: -40°C to +120°C (model-dependent).
Pressure Range: Up to 16 bar (dependent on model).
Material: Typically stainless steel or corrosion-resistant materials.
Electrical Connections: Outputs: 4-20 mA, relay, or digital.
Power Supply: 24 VDC or 110/240 VAC (model-dependent).
Response Time: Typically within seconds.
Mounting Options: Various configurations (top mount, side mount).
Calibration: Adjustable settings for different fluids.
Protection Class: IP65 or higher.
HD RF admittance level switches measure electrical admittance to detect liquid levels:
Field Generation: An RF signal creates a high-frequency electromagnetic field.
Liquid Interaction: The field interacts with the liquid, causing changes in admittance based on its properties.
Level Detection: Changes are continuously monitored. When a predetermined level is reached, the switch activates its output signal, triggering alarms or control systems.
Versatility: This technology accurately detects various liquids, including aggressive chemicals, often without direct contact.
Calibration: Easily adjustable for different fluids and applications.
This ensures reliable and precise level measurement, enhancing safety and efficiency in industrial settings.
