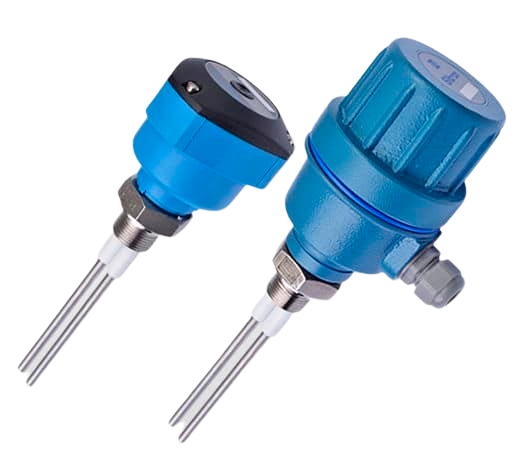

The 2 Channel Conductivity Level Switch is a versatile device designed for precise monitoring of liquid levels in various applications. It operates using the principle of electrical conductivity, employing two sets of electrodes to detect the presence or absence of a liquid. Each channel can independently monitor different levels, allowing for high and low level detection.
When the liquid reaches the electrode level, it completes the circuit, triggering the switch for the corresponding channel. This functionality makes the 2 Channel Conductivity Level Switch ideal for applications in industries such as water treatment, food processing, and chemical handling. Its compact design, reliability, and ease of installation make it a practical solution for maintaining optimal liquid levels in tanks and reservoirs.
Water Treatment: Used to monitor high and low water levels in tanks and reservoirs, ensuring efficient treatment processes.
Food Processing: Ideal for detecting liquid levels in food and beverage production, such as in mixing tanks and storage vessels.
Chemical Handling: Employed to monitor levels of various chemicals in storage tanks, ensuring safe and accurate handling.
Industrial Processes: Applied in manufacturing environments to monitor levels of lubricants, coolants, and other liquids.
Wastewater Management: Used for level detection in wastewater treatment facilities to maintain proper operational efficiency.
Pharmaceutical Manufacturing: Utilized for accurate liquid level measurement in the production of pharmaceuticals and biopharmaceuticals.
Hydroponics and Aquaculture: Effective in monitoring nutrient solutions and water levels in hydroponic systems and fish farms.
Operating Principle: Electrical conductivity measurement
Electrode Material: Stainless steel, titanium, or other corrosion-resistant materials
Process Temperature Range: -10°C to +80°C (14°F to +176°F), depending on model
Process Pressure Range: Up to 6 bar (87 psi), depending on design
Power Supply: Typically 24 VDC or 110-240 VAC options
Output Signal: Relay, PNP/NPN, or analog (4-20 mA)
Response Time: Typically <1 second
Mounting Options: Flange or threaded fittings for easy installation
Certifications: CE, UL, or other relevant industry standards
The 2 Channel Conductivity Level Switch operates based on the principle of electrical conductivity. It employs two sets of electrodes submerged in the liquid to monitor its level. Each channel is designed to detect high and low liquid levels independently.
When the liquid reaches the level of the electrodes, it completes the circuit between them, allowing current to flow. The switch then triggers an output signal for the corresponding channel, indicating either a high or low level condition. In the absence of liquid, the circuit remains open, and no current flows.
This dual-channel functionality allows for enhanced monitoring capabilities, making the 2 Channel Conductivity Level Switch ideal for applications that require precise liquid level control. It is particularly effective in industries such as water treatment, food processing, and chemical handling, where reliable level detection is essential for operational efficiency.
