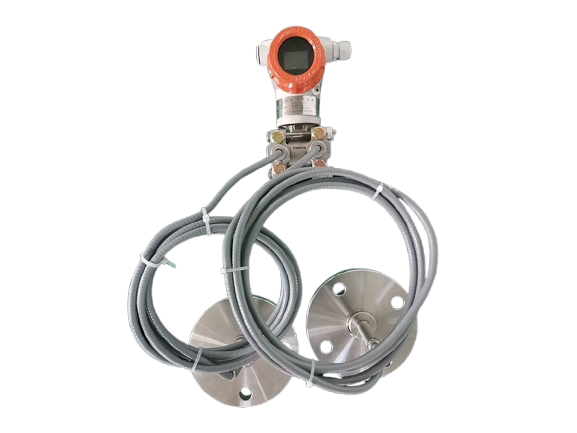

Differential Pressure (DP) Level Measurement uses pressure readings and specific gravity to output level. DP Level is a common measurement technique that is used in a wide variety of applications. Solutions include standard transmitter connections and integrated transmitters with direct or remote mount seals that can be configured in tuned, balanced, and electronic systems. Additional Wireless options are also available.
A Differential Pressure (DP) Level Transmitter measures the pressure difference between the liquid column in a tank and atmospheric pressure. It has two sensors: one at the tank's bottom for hydrostatic pressure and another open to the atmosphere. The transmitter calculates this differential pressure, which correlates with the liquid level, and converts it into a 4-20 mA electrical signal for monitoring. It can also compensate for temperature and density changes, ensuring reliable measurements that facilitate effective control of filling and draining processes.
simple structure, low price, easy to install and dismantle, small pressure loss and other characteristics.The multi-point arrangement can be realized to measure the average velocity of large wind passage.
It is more suitable for the measurement of gas flow rate with low flow rate in large pipelines.It's fast.
Density Variations: DP Level Transmitters are sensitive to changes in liquid density, which can occur due to temperature fluctuations, composition changes, or phase shifts. This variability can affect measurement accuracy and often requires compensation for precise readings.
Viscosity Effects: The presence of high-viscosity liquids can impede the response time of the transmitter and lead to inaccuracies, making it challenging to obtain reliable level measurements.
Installation Complexity: Proper installation is critical for DP transmitters, as it involves complex arrangements of impulse lines and diaphragm seals. Improper installation can result in measurement errors.
Static Head Pressure: The static head pressure in a tank can influence the readings of a DP transmitter, necessitating additional calculations or corrections to ensure accuracy.
Limited Application Range: DP Level Transmitters are not suitable for measuring very low or very high liquid levels, as they have a restricted pressure range.
Maintenance Requirements: Regular maintenance is essential for DP transmitters to ensure reliability, particularly in harsh environments where fouling or blockages may occur.
Sensitivity to Vibrations: Mechanical vibrations from surrounding equipment can affect the accuracy and reliability of DP Level Transmitters, leading to erroneous measurements.
Temperature Sensitivity: Extreme temperatures can impact the materials used in DP transmitters, potentially resulting in failure or inaccurate readings if not properly managed.
