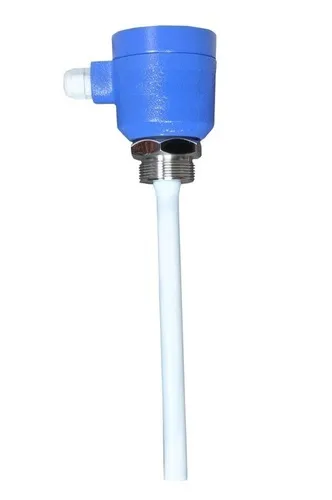

The 1 Channel Conductivity Level Switch is an effective device used for monitoring liquid levels in various applications. This switch operates based on the principle of electrical conductivity, using two or more electrodes to detect the presence or absence of a liquid. When the liquid reaches the electrode level, it completes the circuit, triggering the switch to indicate the level condition.
Ideal for applications in industries such as water treatment, food processing, and chemical handling, the 1 Channel Conductivity Level Switch offers reliable and accurate level measurement. Its simple installation, low maintenance requirements, and cost-effective design make it a practical choice for ensuring optimal liquid levels in tanks, reservoirs, and other containers.
Water Treatment: Used for monitoring levels of water in tanks and reservoirs, ensuring efficient treatment processes.
Food Processing: Ideal for detecting liquid levels in food and beverage production, such as in mixing tanks and storage vessels.
Chemical Handling: Employed to monitor levels of various chemicals in storage tanks, ensuring safe and accurate handling.
Industrial Processes: Applied in manufacturing environments to monitor levels of lubricants, coolants, and other liquids.
Wastewater Management: Used for level detection in wastewater treatment facilities to maintain proper operational efficiency.
Pharmaceutical Manufacturing: Utilized for accurate liquid level measurement in the production of pharmaceuticals and biopharmaceuticals.
Operating Principle: Electrical conductivity measurement
Electrode Material: Stainless steel, titanium, or other corrosion-resistant materials
Process Temperature Range: -10°C to +80°C (14°F to +176°F), depending on model
Process Pressure Range: Up to 6 bar (87 psi), depending on design
Power Supply: Typically 24 VDC or 110-240 VAC options
Output Signal: Relay, PNP/NPN, or analog (4-20 mA)
Response Time: Typically <1 second
Mounting Options: Flange or threaded fittings for easy installation
Certifications: CE, UL, or other relevant industry standards
The 1 Channel Conductivity Level Switch operates based on the principle of electrical conductivity. It uses two or more electrodes submerged in the liquid to measure the conductivity between them. When the liquid reaches the level of the electrodes, it completes the electrical circuit between them, allowing current to flow.
In the absence of liquid, the circuit remains open, and no current flows. As soon as the liquid level rises to the point where it contacts the electrodes, it creates a conductive path, triggering the switch. This action can activate alarms, control pumps, or indicate high or low level conditions, depending on the configuration of the switch.
This design ensures reliable and accurate liquid level detection in various applications, including water treatment, food processing, and chemical handling. The 1 Channel Conductivity Level Switch is particularly effective in environments where continuous monitoring of liquid levels is essential.
