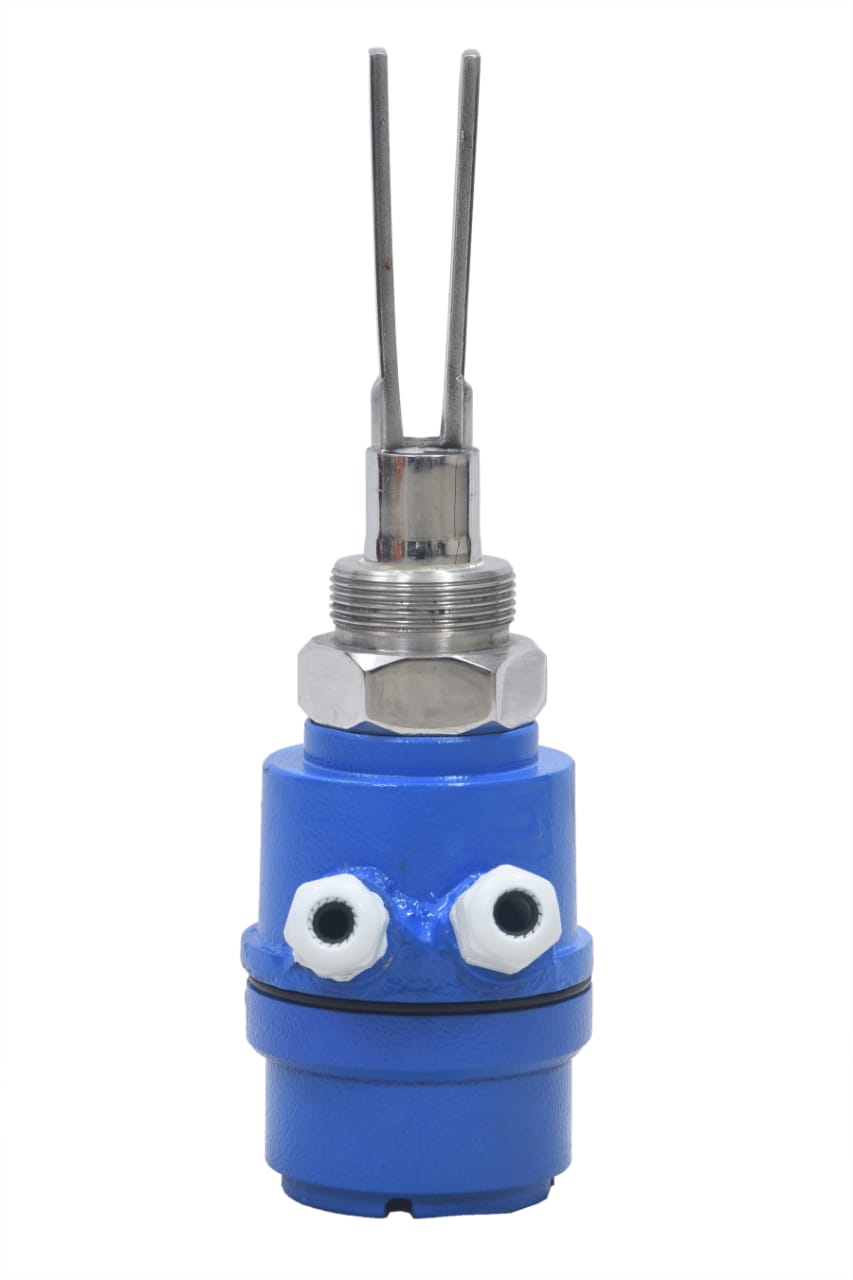

The compact fork RF admittance level switch is designed for precise detection of liquid or solid levels through the measurement of electrical admittance changes. It generates a high-frequency RF signal that establishes an electromagnetic field around its sensing fork. When the medium contacts the fork, the admittance is altered based on the medium's dielectric properties. This change is continuously monitored, allowing for real-time detection of level variations.
When specific level thresholds are reached, the switch activates its output signal, which can control alarms, pumps, or other systems for accurate level management. This functionality ensures reliable operation across various applications, enhancing safety and efficiency in industrial settings. Its compact design makes it suitable for installation in space-constrained environments, while still providing robust performance.
Chemical Processing: Monitors aggressive chemicals to ensure safety and prevent overflow.
Food and Beverage: Detects liquid levels in mixing and storage tanks for quality assurance.
Water Treatment: Manages water levels, preventing pump dry running and overflow.
Pharmaceuticals: Ensures precise levels in reactors and storage for regulatory compliance.
Oil and Gas: Tracks levels in separators and tanks to prevent spills.
Pulp and Paper: Monitors slurries and chemicals for efficient resource management.
HVAC Systems: Regulates water levels in condensate tanks for efficiency.
Bulk Handling: Detects levels of powders and grains in silos for inventory optimization.
The compact fork design offers reliable and accurate level measurement across various industrial applications.
Operating Principle: Capacitive or conductive measurement.
Measuring Range: A few millimeters to several meters.
Fluid Compatibility: Suitable for various liquids, including aggressive chemicals.
Temperature Range: -40°C to +120°C.
Pressure Range: Up to 16 bar.
Material: Stainless steel or corrosion-resistant materials.
Electrical Connections: 4-20 mA, relay, or digital outputs.
Power Supply: 24 VDC or 110/240 VAC.
Response Time: Typically within seconds.
Mounting Options: Top and side mounting available.
Calibration: Adjustable for different fluids.
Protection Class: IP65 or higher.
The compact fork RF admittance level switch operates by measuring changes in electrical admittance to detect the presence of liquids or solids. It generates a high-frequency RF signal that creates an electromagnetic field around its sensing fork. When the medium (liquid or solid) contacts the fork, it alters the admittance based on the dielectric properties of the medium.
The switch continuously monitors these changes in admittance. When a specific level is reached, the switch activates its output signal. This output can be used to control alarms, pumps, or other systems, ensuring precise level management. This principle allows for reliable and accurate detection in various industrial applications, enhancing safety and operational efficiency.
