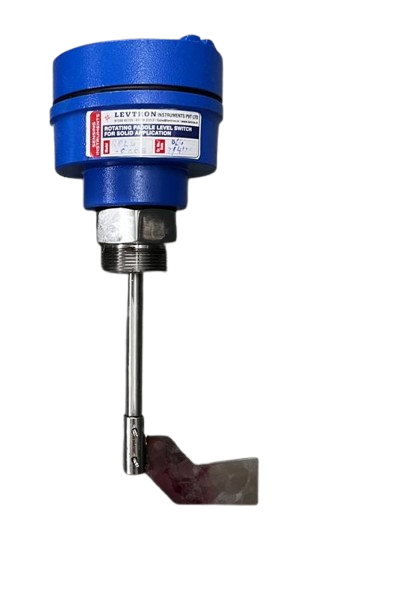

Rotating Paddle Level Switch

Made in India 100% Tested & Calibrated

Model: RPLS-600S

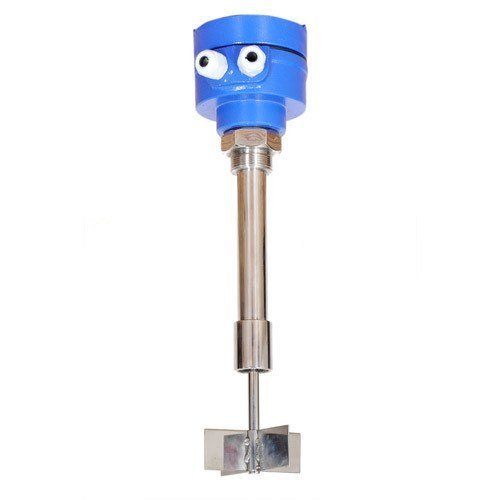

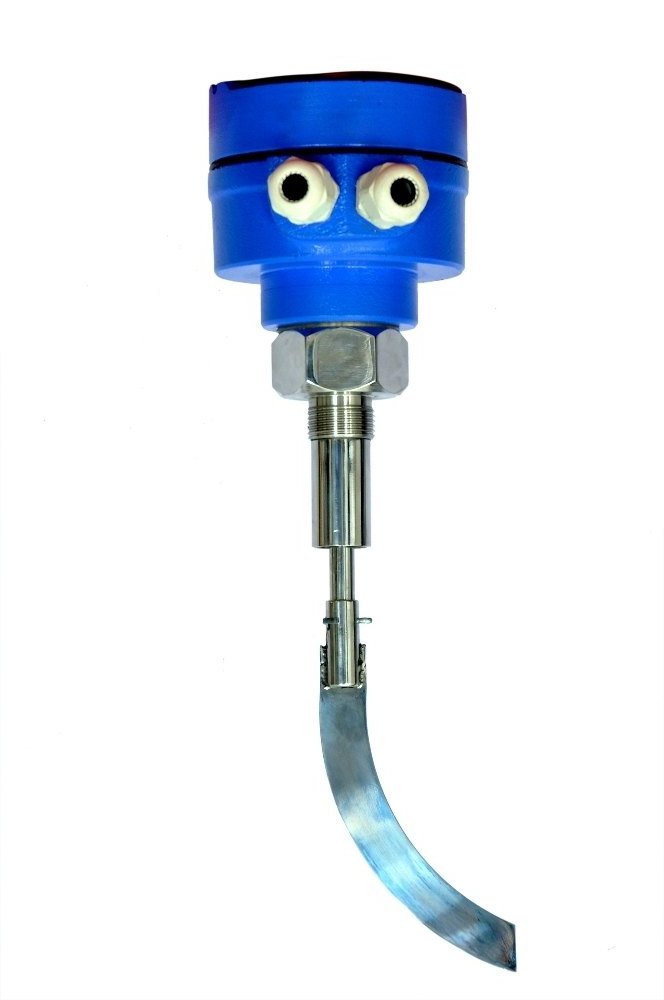

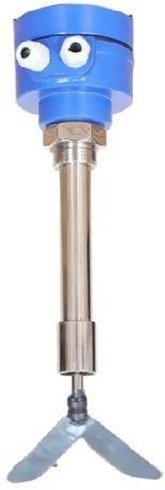

The RPLS-600S is an electro-mechanical rotary paddle level switch designed for bulk solids in silos and hoppers. It is available with multiple interchangeable paddle blade designs (1, 2, 3, 4 Vane, Scythe / T-Type, and J-Type) for various material densities.

Multiple Paddle Types (1/2/3/4 Vane, Scythe, J) Reliable Geared Synchronous Motor Bulk Solids Silos Motor Shut-Off on Trip

Request Fast Quote Catalog Manual

Applications & Suitability

Grain & Flour Silos: Level detection in food processing silos, animal feed bins, and grain elevators.

Cement & Sand Hoppers: High and low level monitoring in concrete batching plants.

Plastic Pellets & Regrind: Level alarm in compounding tanks and injection molding hoppers.

The RPLS-600S is a reliable, maintenance-free level measurement solution for industrial process automation.

Model	RPLS-600S
Application Media	Grains, Plastic Pellets, Cement, Sand, Powdered Bulk
Paddle Options	1-Vane, 2-Vane, 3-Vane, 4-Vane, Scythe / T-Type, J-Type
Rotation Speed	1 RPM
Power Supply	230V AC, 110V AC, or 24V DC
Output	1 SPDT / DPDT Microswitch (10A @ 250V AC)
Process Temperature	-20°C to +80°C (High temp up to +200°C)
Process Connection	1.5" or 2" BSP/NPT Threaded or Flanged
Enclosure	Cast Aluminium IP65 / IP66
