Infra Point Level Switch

Made in India 100% Tested & Calibrated

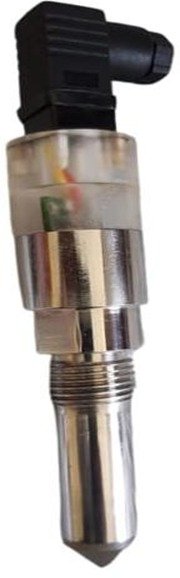

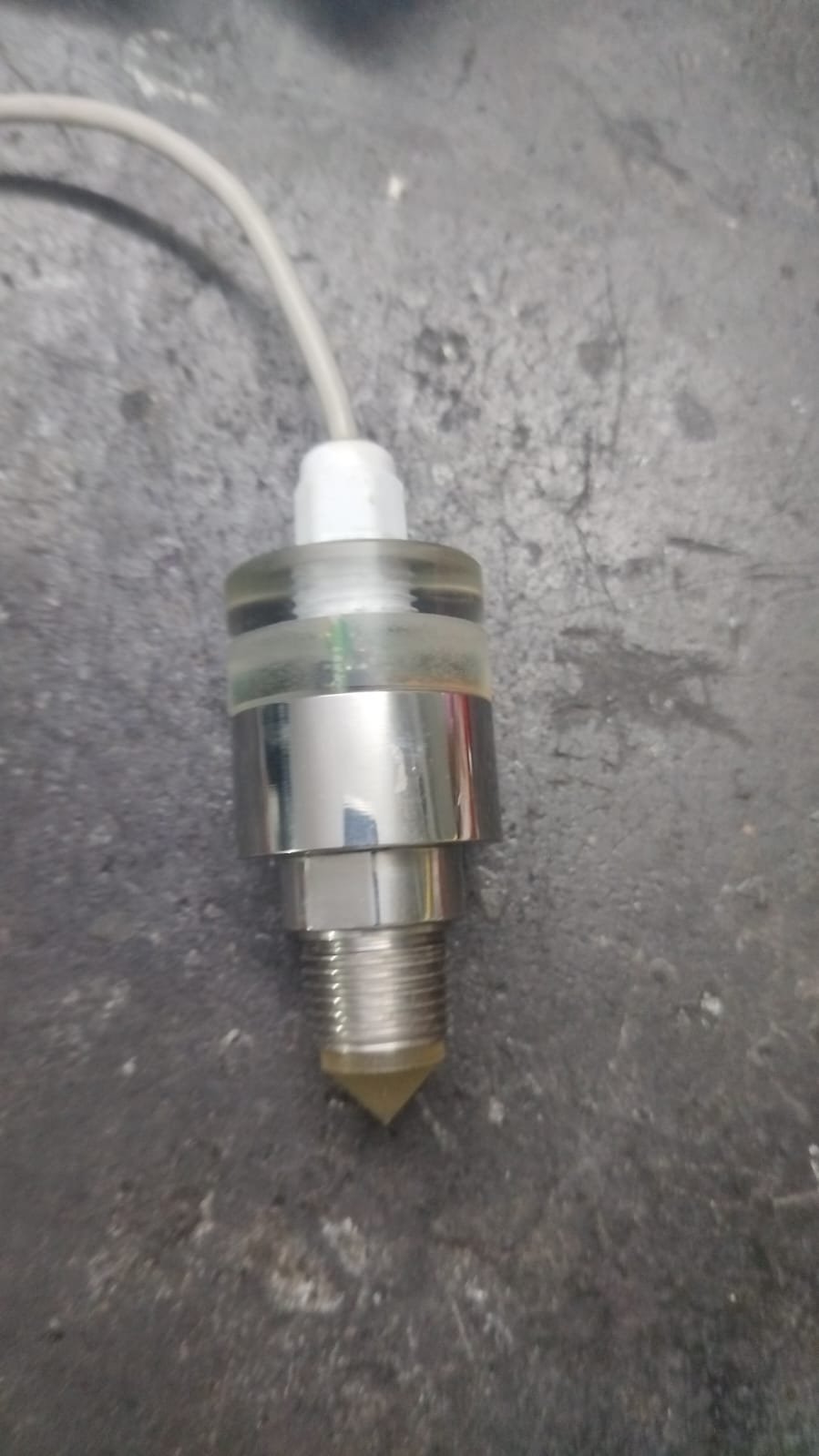

Model: IPLS-1000L

The IPLS-1000L is a solid-state optical point level switch utilizing internal infrared total reflection in a polysulfone/glass prism. With zero moving parts, it delivers instantaneous liquid detection regardless of fluid color, conductivity, or viscosity.

Optical Infrared Total Reflection Instantaneous < 1ms Switching Zero Moving Parts Immune to Fluid Conductivity

Request Fast Quote Catalog Manual

Applications & Suitability

Medical & Laboratory: Liquid level monitoring in hemodialysis machines, analyzers, and reagent containers.

Compressors & Chillers: Oil and refrigerant level monitoring.

Semiconductor & Electronics: High-purity chemical level sensing.

The IPLS-1000L is a reliable, maintenance-free level measurement solution for industrial process automation.

Model	IPLS-1000L
Application Media	Water, Oils, Solvents, Coolants, Medical Fluids
Prism Material	Polysulfone / Fused Quartz Glass
Housing Material	SS316 / Brass / PVDF
Power Supply	5-24V DC (Low Power)
Output	NPN / PNP Open Collector or Relay
Response Time	< 1 millisecond
Process Temperature	-20°C to +125°C
Process Pressure	Up to 25 Bar
Process Connection	1/2" or 3/8" BSP/NPT Threaded
