Vibrating Rod Level Switch

Made in India 100% Tested & Calibrated

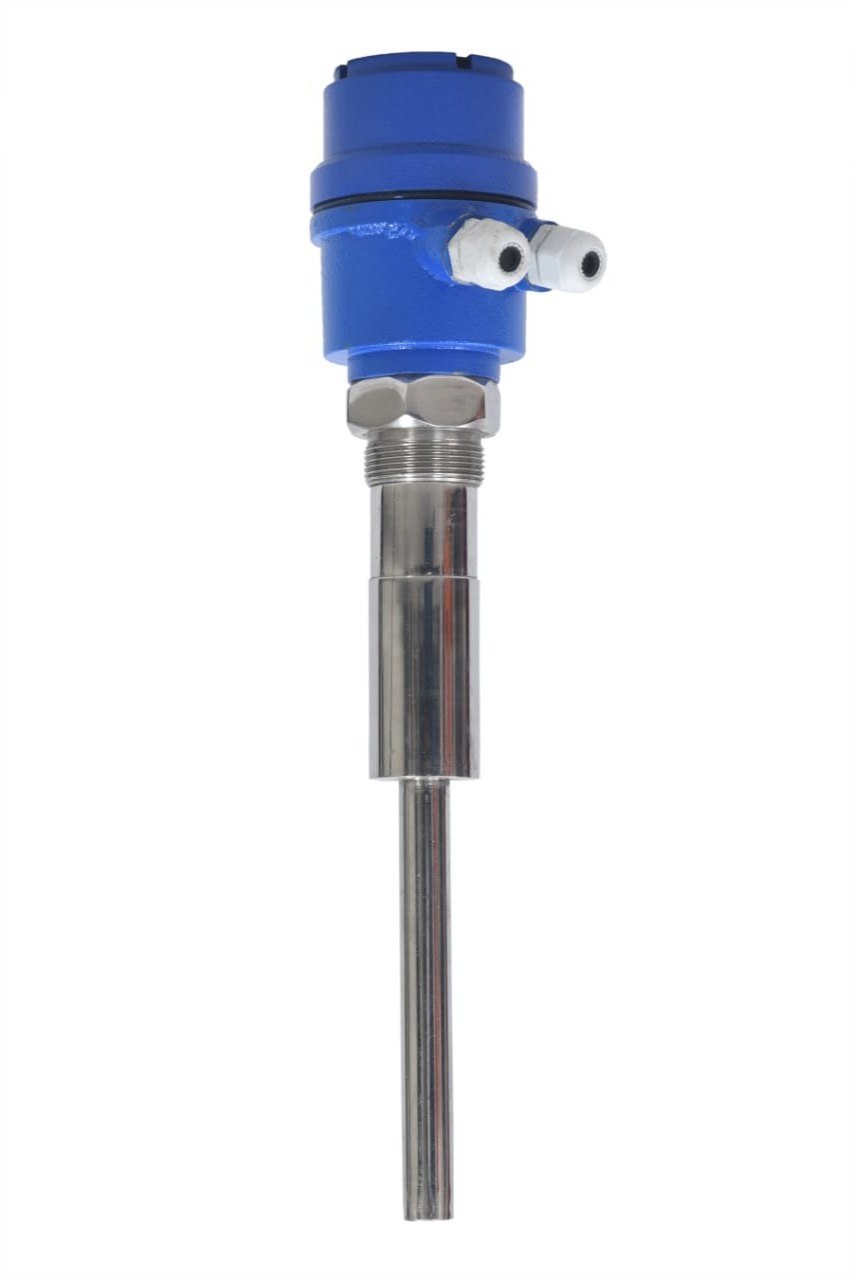

Model: VRLS-500S

The VRLS-500S is a single-rod vibrating level switch that completely eliminates material bridging, jamming, and false alarms between fork tines. Ideal for granular materials, plastic flakes, wood chips, and agricultural grains.

Single Rod Design (No Bridging) Granular Solids & Flakes Zero Jamming Between Tines No Calibration Needed

Request Fast Quote Catalog Manual

Applications & Suitability

Plastic Flakes & Regrind: Level detection in recycling plants where flakes would jam standard forks.

Wood Pellets & Biomass: Silo level switching in biomass and sawmills.

Animal Feed & Grains: Immune to grain lodging and corn husks.

The VRLS-500S is a reliable, maintenance-free level measurement solution for industrial process automation.

Model	VRLS-500S
Application Media	Plastic Flakes, Grains, Pellets, Wood Chips, Regrind
Probe Type	Single Solid Stainless Steel Vibrating Rod
Power Supply	Universal 20-250V AC/DC or 24V DC
Output	1 DPDT Relay (5A @ 230V AC)
Process Temperature	-20°C to +150°C
Process Connection	1.5" BSP/NPT Threaded
Enclosure	IP66 Cast Aluminium
