Stainless Steel Diaphragm Switch

Made in India 100% Tested & Calibrated

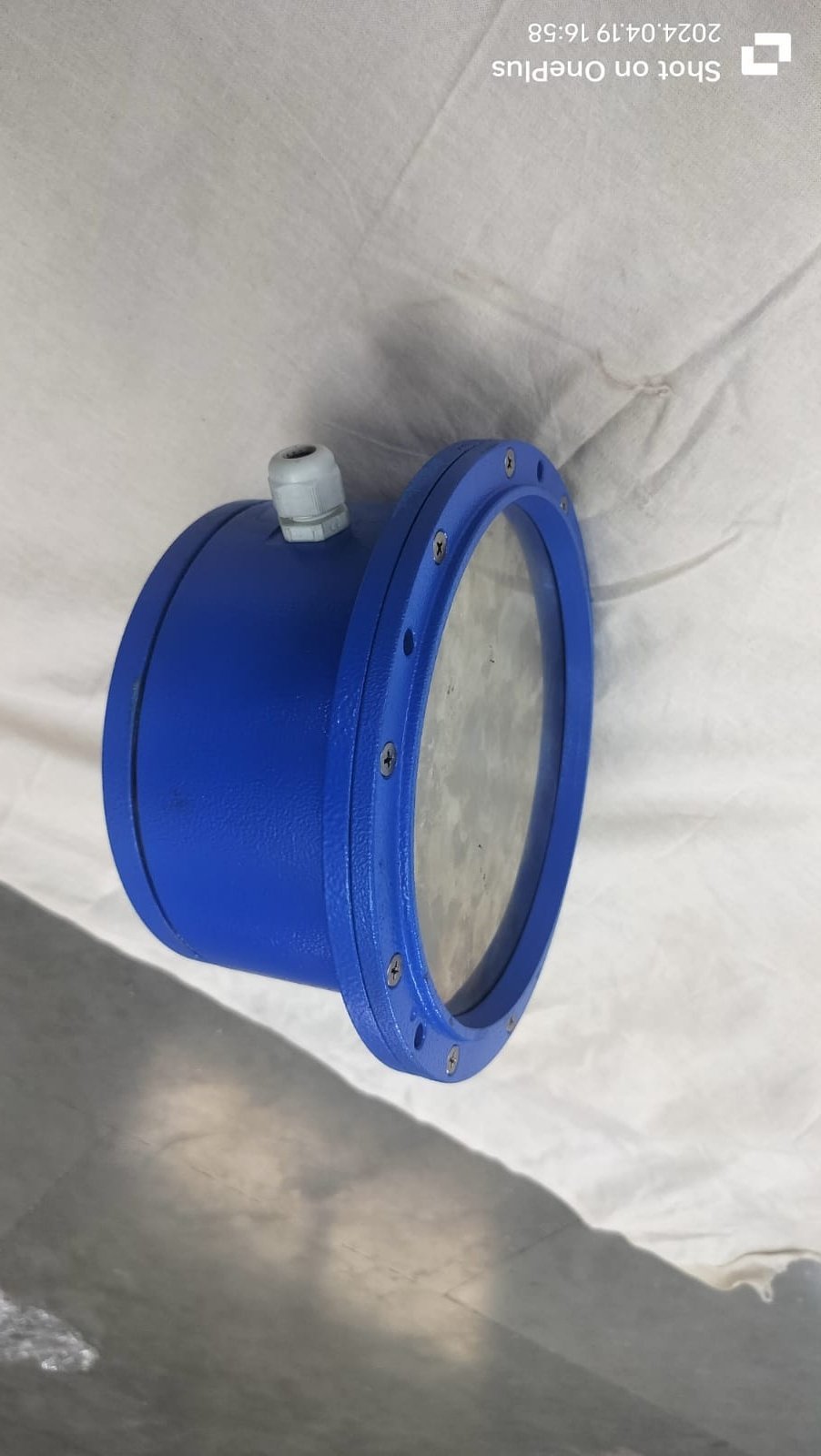

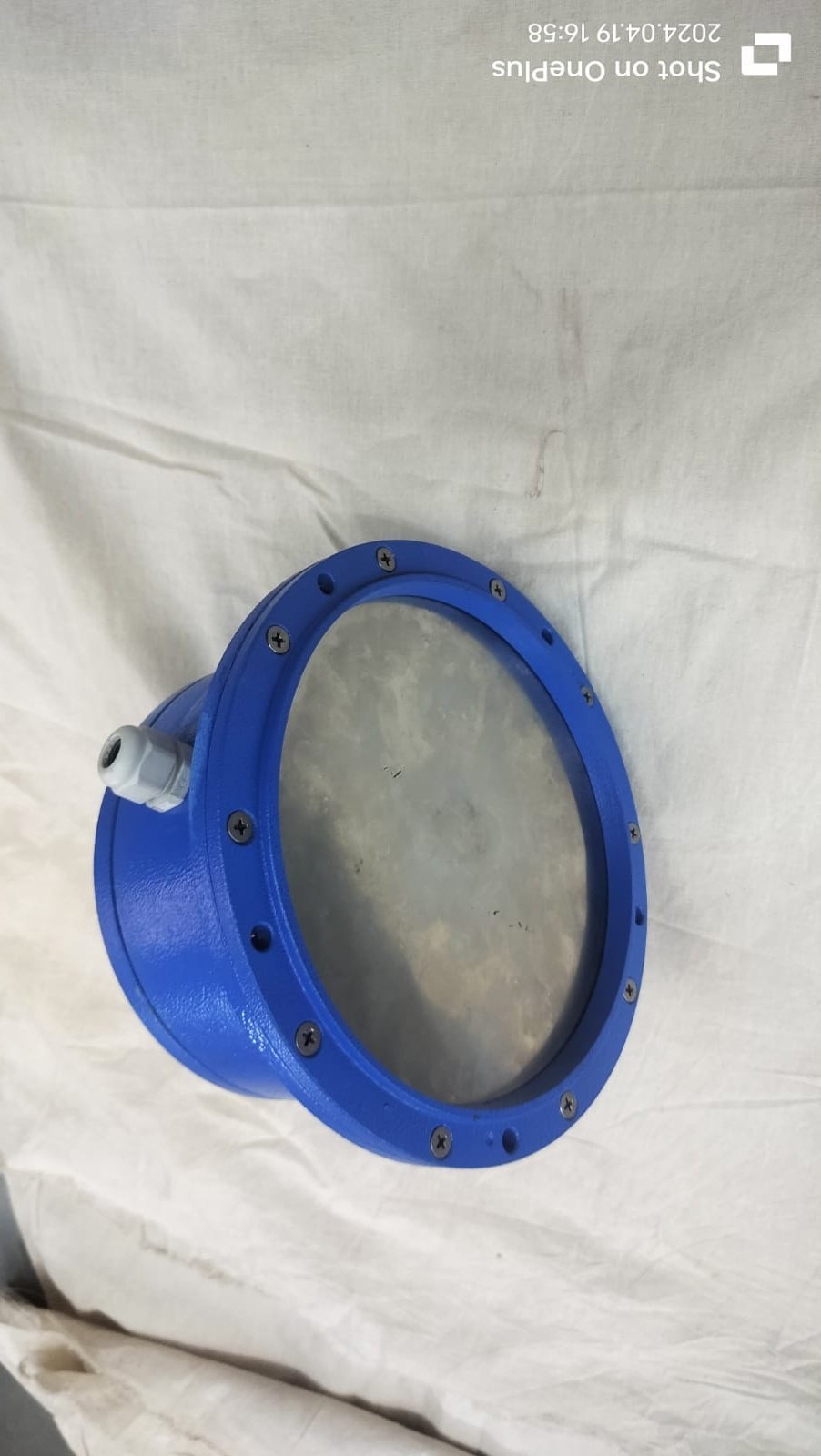

Model: SDLS-1500S

The SDLS-1500S is a heavy-duty metallic stainless steel diaphragm level switch designed for hot, abrasive, and corrosive bulk solids, cement silos, clinker bins, and coal bunkers.

Metallic SS304/SS316 Diaphragm Abrasive Minerals & Cement High Temperature Resistance No Power Required

Request Fast Quote Catalog Manual

Applications & Suitability

Cement Silos & Clinker Bins: Level monitoring in hot, abrasive cement clinker and raw meal silos.

Coal Bunkers: Level detection in thermal power plant coal bunkers.

Hot Fly Ash Hoppers: High temperature ash level monitoring.

The SDLS-1500S is a reliable, maintenance-free level measurement solution for industrial process automation.

Model	SDLS-1500S
Application Media	Cement, Clinker, Sand, Coal, Fly Ash, Hot Minerals
Diaphragm Material	Stainless Steel SS304 / SS316
Housing	Heavy-Duty Cast Aluminium
Switch Output	1 SPDT Microswitch (15A @ 250V AC)
Process Temperature	-20°C to +200°C
Mounting	Bolt-on Flange onto silo sidewall
