Compact RF Admittance Level Switch (Liquids)

Made in India 100% Tested & Calibrated

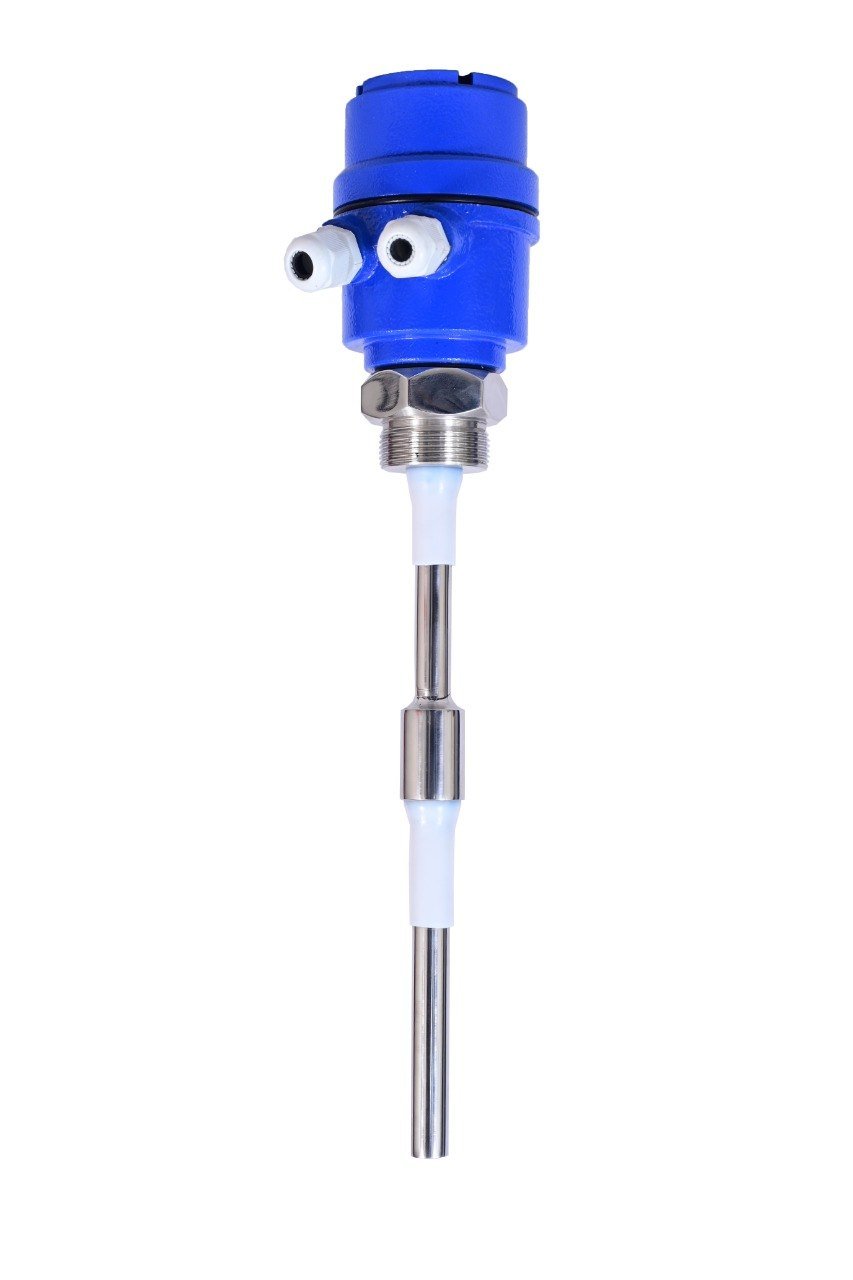

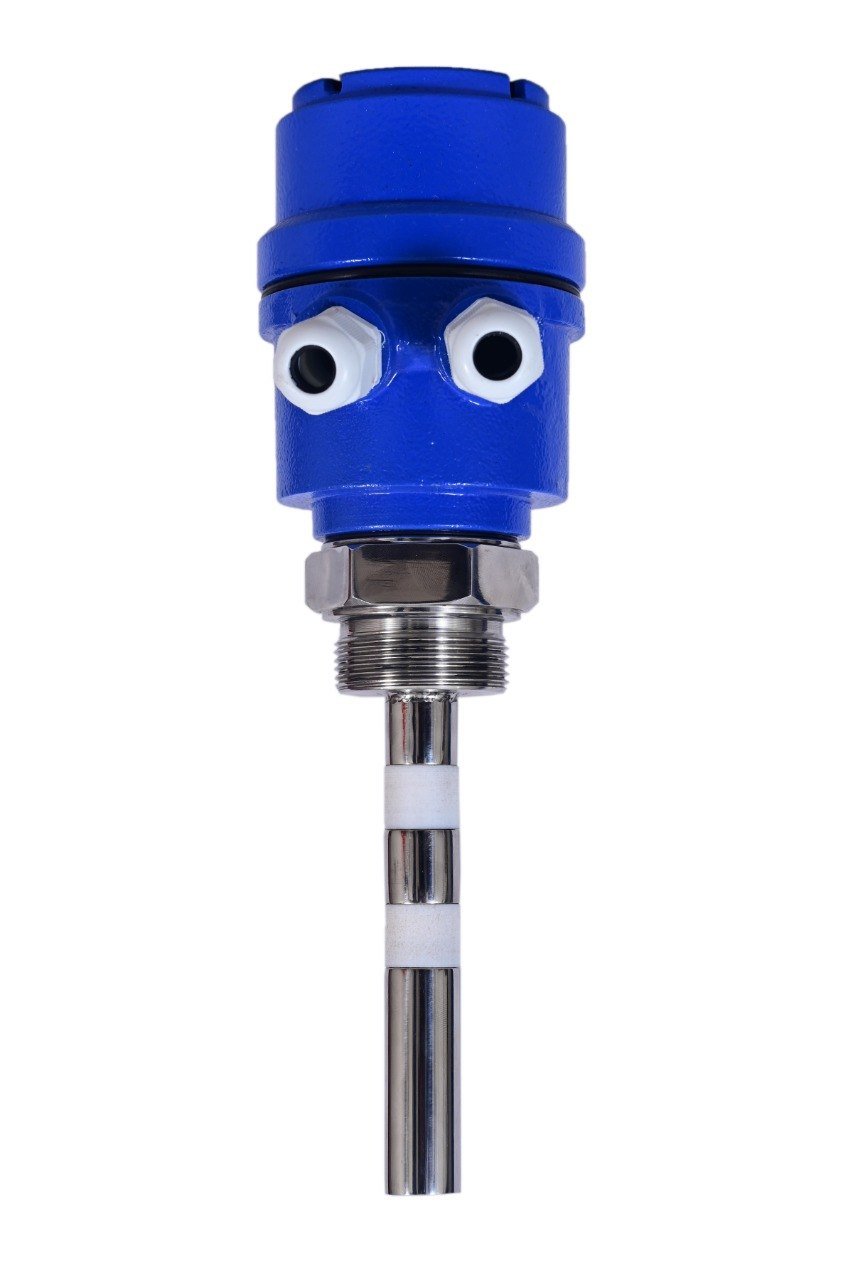

Model: RFLS-100L

The RFLS-100L is a compact RF admittance point level switch engineered for liquid level detection in tanks, process vessels, and pipelines. Featuring an active coat-guard driven shield, it reliably ignores viscous liquid coating, foam, and sticky slurry build-up on the probe.

Water, Oils & Viscous Liquids Active Coat-Guard Shield No Moving Parts Universal 15-260V AC/DC

Request Fast Quote Catalog Manual

Applications & Suitability

Liquid Level Control: Accurate high and low point level monitoring in tanks containing water, oils, fuels, and chemicals.

Pump Dry Run Protection: Instant level detection in suction pipes and supply tanks to prevent costly pump damage.

Viscous & Sticky Media: Maintains accurate switching in syrups, paints, lubricants, glues, and wastewater.

Overfill Prevention: Safeguards storage tanks and mixing vessels against hazardous overflows.

Interface Detection: Detects boundary levels between immiscible liquids such as oil and water.

The RFLS-100L is a reliable, maintenance-free level measurement solution for industrial process automation.

Model	RFLS-100L
Application Media	Water, Chemicals, Oils, Slurries, Wastewater
Power Supply	Universal 15 to 80 V DC & 15 to 260 V AC, 50/60 Hz
Power Consumption	< 2.5 VA
Output Relay	1 DPDT Relay (5A @ 230V AC / 24V DC Resistive)
Fail-Safe Mode	Field Selectable High (FSH) / Low (FSL)
Time Delay	0.5 to 20 seconds adjustable
Sensitivity	Adjustable multi-turn potentiometer
Process Temperature	-20°C to +150°C
Ambient Temperature	-20°C to +70°C
Process Pressure	Up to 15 Bar
Probe Material	SS316 with Full PTFE Insulation
Standard Insertion Length	150 mm to 1500 mm (Custom lengths available)

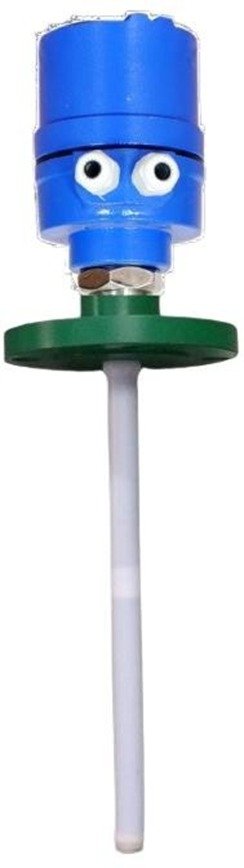

Process Connection	1" / 1.5" / 2" BSP/NPT Threaded or ANSI Flanged
Enclosure	Cast Aluminium Weatherproof IP66
Cable Entry	2 x M20 x 1.5 Cable Glands
Status Indication	Dual-colour LED (Green = Normal, Red = Alarm / Trip)
