Diaphragm Level Switch (Rubber / Neoprene)

Made in India 100% Tested & Calibrated

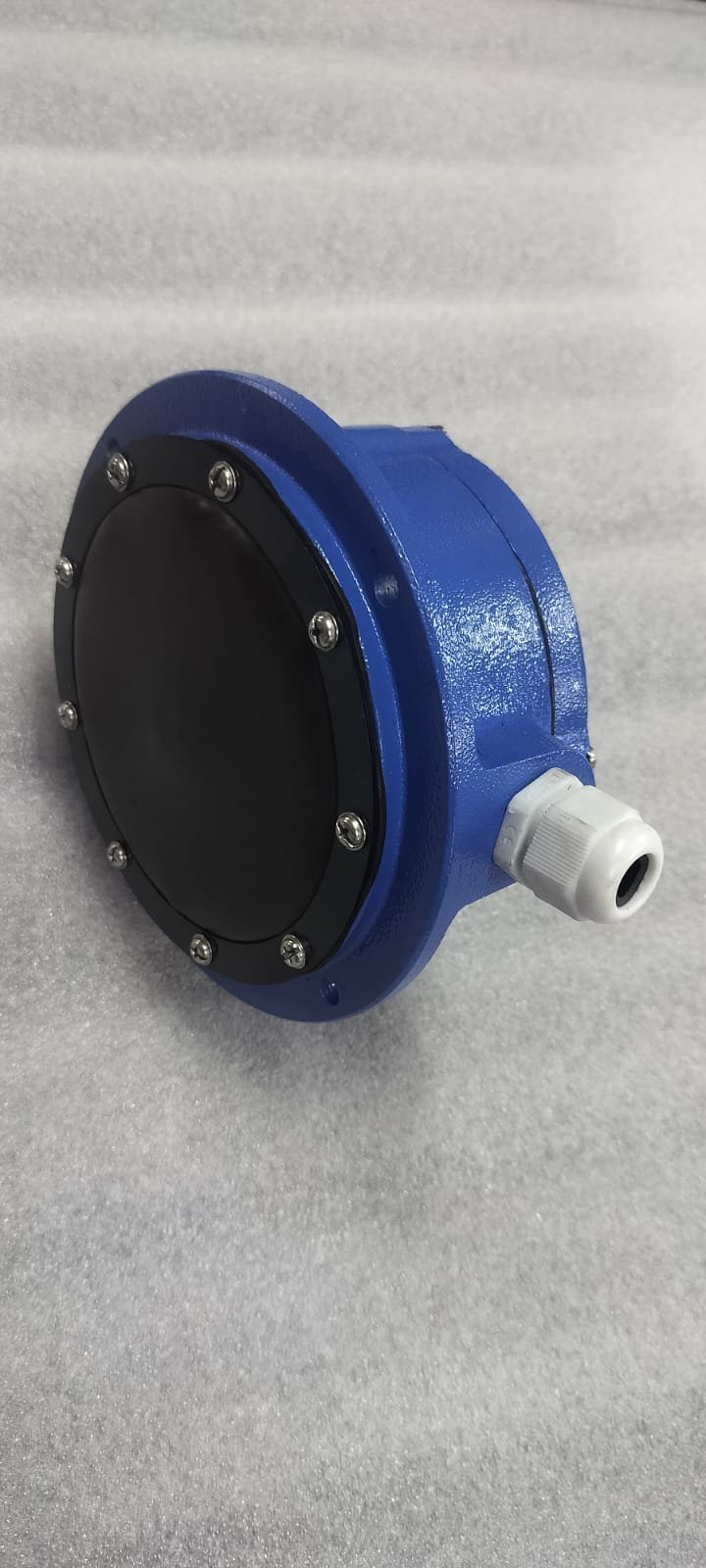

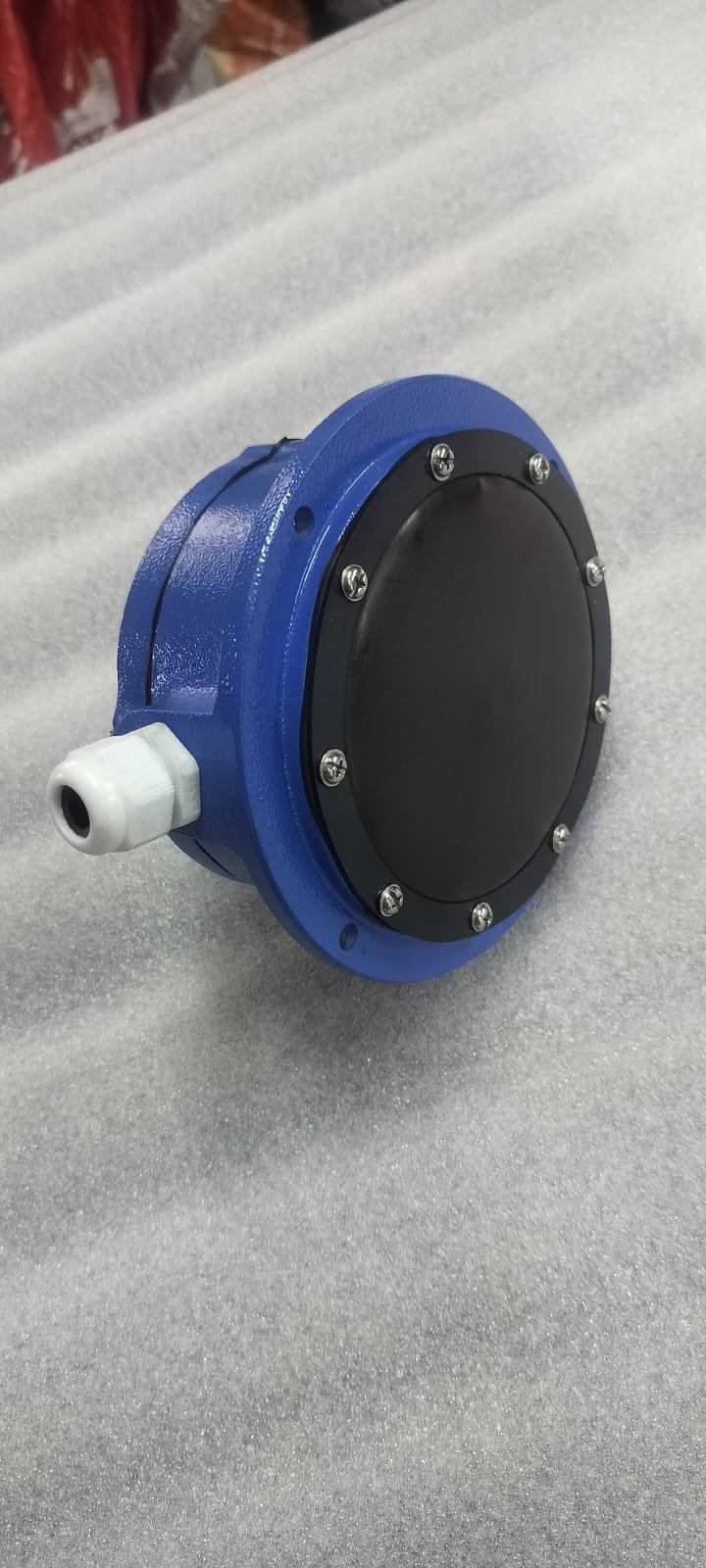

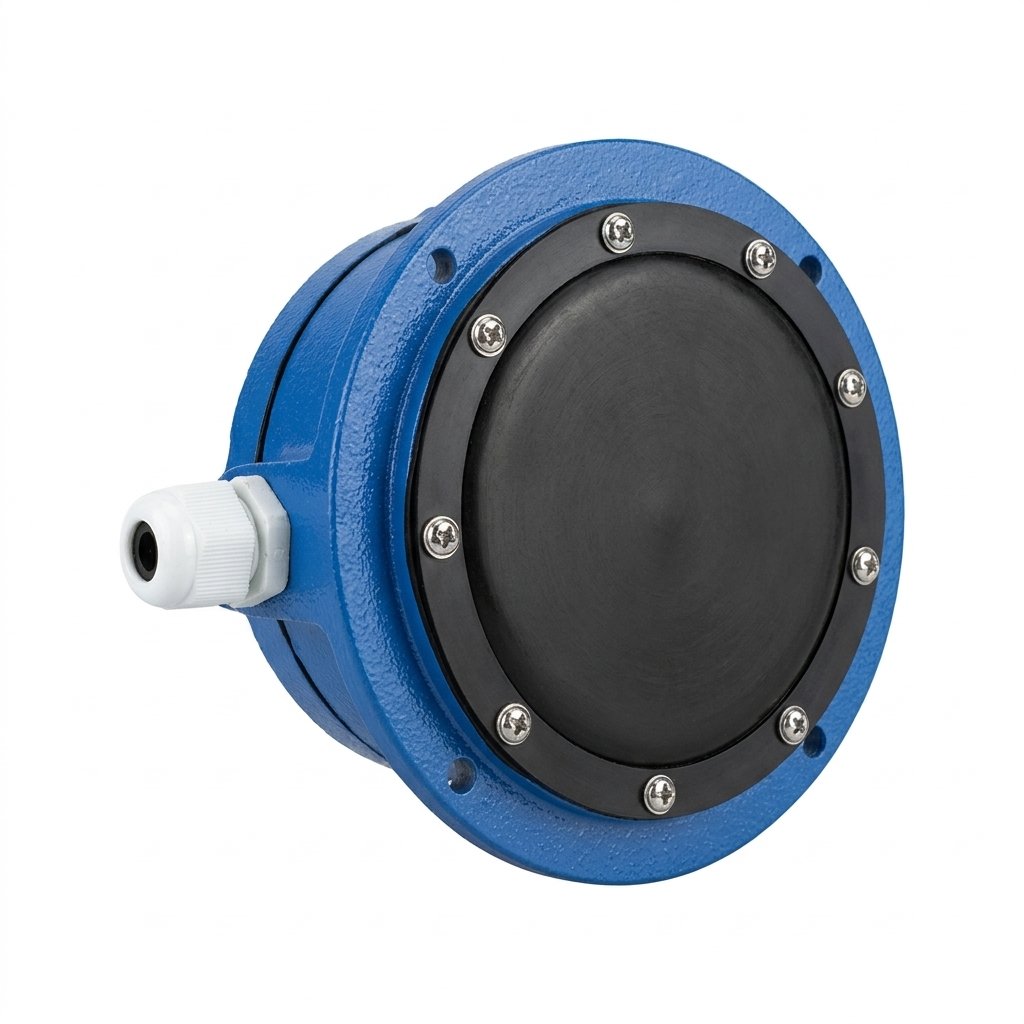

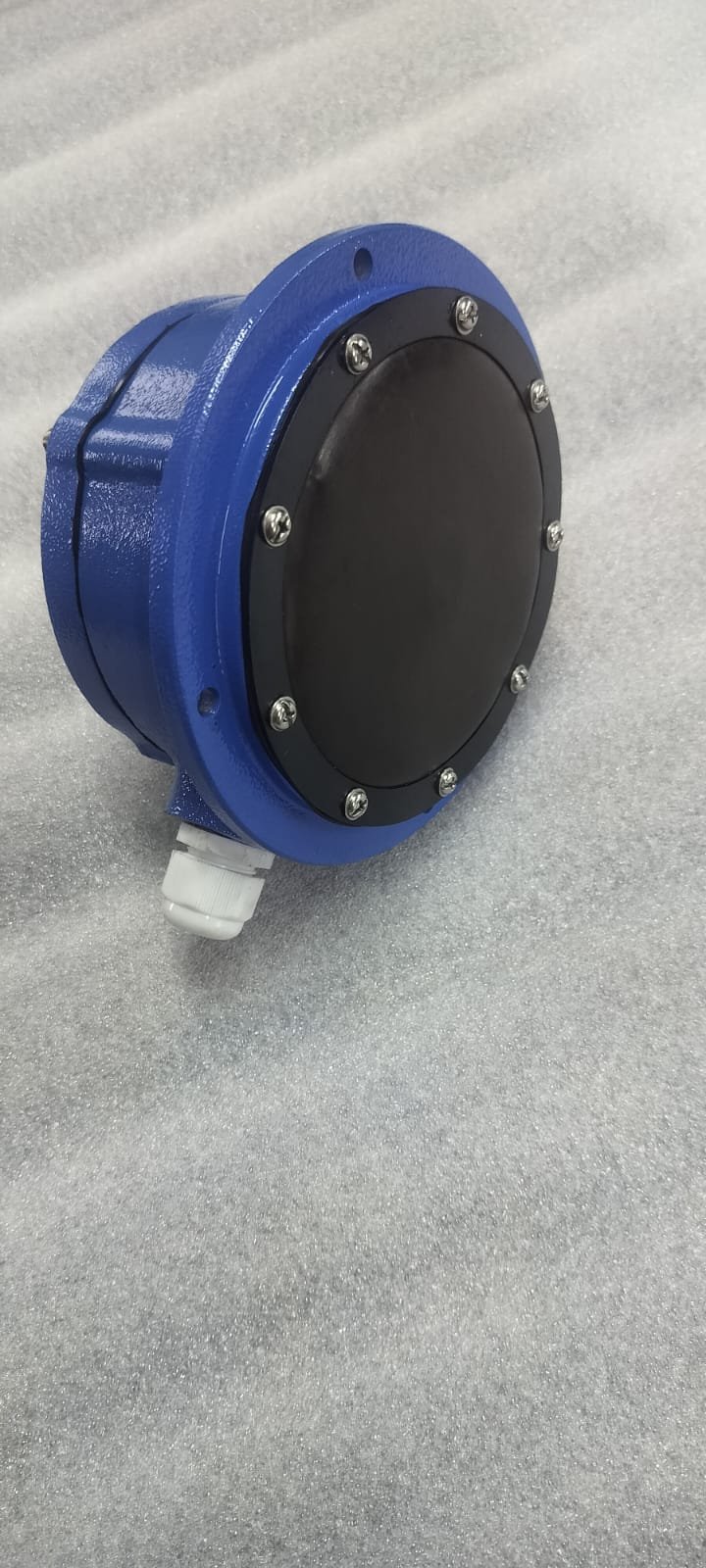

Model: RDLS-1400S

The RDLS-1400S is a pressure-activated mechanical diaphragm level switch for low and high level alarms in bins, silos, and chutes containing dry, free-flowing, non-abrasive powders and grains.

Pressure-Activated Mechanical Diaphragm Dry Powders & Grains No External Power Needed Direct Microswitch Output

Request Fast Quote Catalog Manual

Applications & Suitability

Grain Bins & Feed Hoppers: Level monitoring in flour, grain, and feed storage.

Packaging Hoppers: High and low level alarm in bagging plants.

Sawdust & Wood Chips: Level detection in woodworking and biomass facilities.

The RDLS-1400S is a reliable, maintenance-free level measurement solution for industrial process automation.

Model	RDLS-1400S
Application Media	Flour, Grains, Feed, Plastic Granules, Sawdust
Diaphragm Material	Heavy-Duty Neoprene / Nitrile Rubber
Housing	Cast Aluminium
Switch Output	1 SPDT Microswitch (15A @ 250V AC)
Process Temperature	-20°C to +80°C
Mounting	Flanged onto bin wall (Flush inside)
