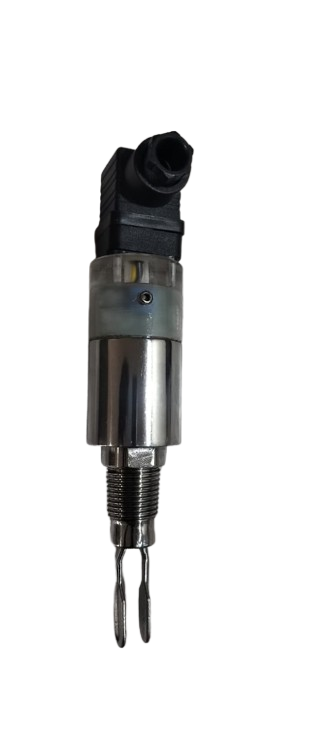

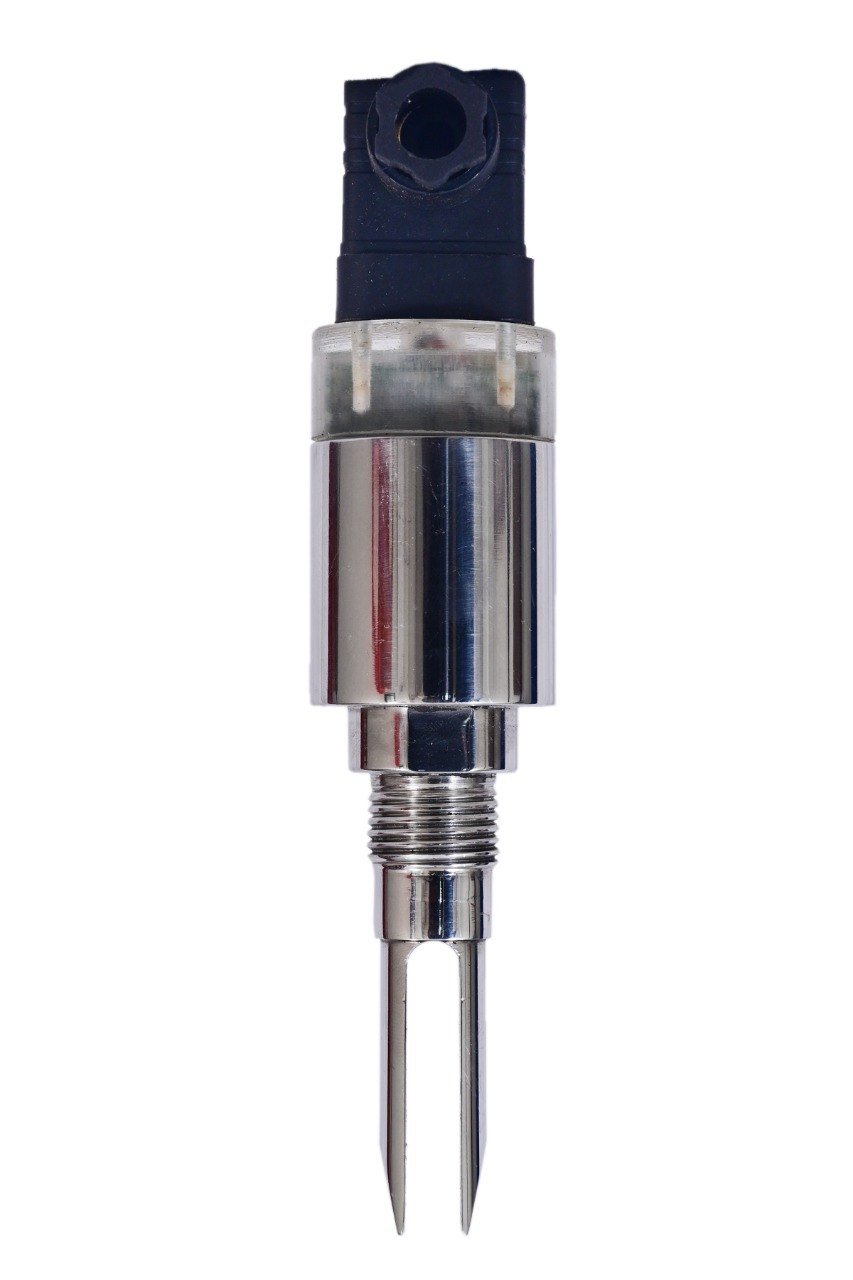

Miniature Vibrating Fork Level Switch

Made in India 100% Tested & Calibrated

Model: MVFLS-800L

The MVFLS-800L is a miniature stainless steel tuning fork level switch for compact liquid tanks, pipe dry-run protection, and OEM machinery skids. With its short 40mm fork tines, it fits into small vessels and pipes down to 1 inch.

Miniature Short Fork (40mm) Fits in 1" Pipes OEM Skids & Small Tanks Pump Protection

Request Fast Quote Catalog Manual

Applications & Suitability

Pipe Dry Run Alarm: Mounts into liquid supply pipes to prevent pump cavitating and running dry.

Compact OEM Skids: Level control in hydraulic power units, lube oil skids, and chillers.

Dosing & Mixing Tanks: Point level detection in small chemical batching tanks.

The MVFLS-800L is a reliable, maintenance-free level measurement solution for industrial process automation.

Model	MVFLS-800L
Application Media	Water, Lubricating Oils, Coolants, Chemicals
Fork Length	40 mm (Ultra-compact)
Power Supply	12-36V DC or 20-250V AC
Output	Transistor PNP / NPN (3-Wire) or Relay Output
Process Temperature	-20°C to +130°C
Process Pressure	Up to 40 Bar
Process Connection	3/4" or 1" BSP/NPT Male Thread
