Float Level Transmitter

Made in India 100% Tested & Calibrated

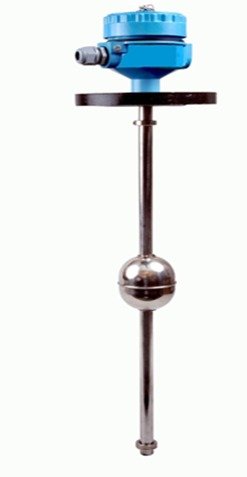

Model: MFLT-1100L

The MFLT-1100L is a continuous magnetic float level transmitter delivering continuous 4-20mA current loop or RS485 Modbus digital output for liquid storage tanks, chemical vessels, and fuel reservoirs.

Continuous 4-20mA / RS485 Output Magnetic Reed Chain Resolution Direct Liquid Level Tracking Stainless Steel SS316

Request Fast Quote Catalog Manual

Applications & Suitability

Liquid Storage Tanks: Continuous level monitoring in diesel, water, and chemical storage tanks.

Fuel & Oil Tanks: Precise inventory monitoring in generator fuel tanks and oil depots.

Chemical Batching: Continuous feedback to PLC / SCADA automation systems.

The MFLT-1100L is a reliable, maintenance-free level measurement solution for industrial process automation.

Model	MFLT-1100L
Output Signal	4-20 mA (2-Wire Loop Powered) or RS485 Modbus RTU
Resolution	5 mm / 10 mm / 12 mm
Measuring Range	300 mm to 4000 mm
Power Supply	24V DC
Accuracy	± 0.5% of Full Scale
Process Temperature	-20°C to +120°C
Process Connection	2" / 3" Flanged or 2" BSP Threaded
Enclosure	Cast Aluminium IP66 / Flameproof Exd
