Multi-Point Float Level Switch

Made in India 100% Tested & Calibrated

Model: MFLS-1300L

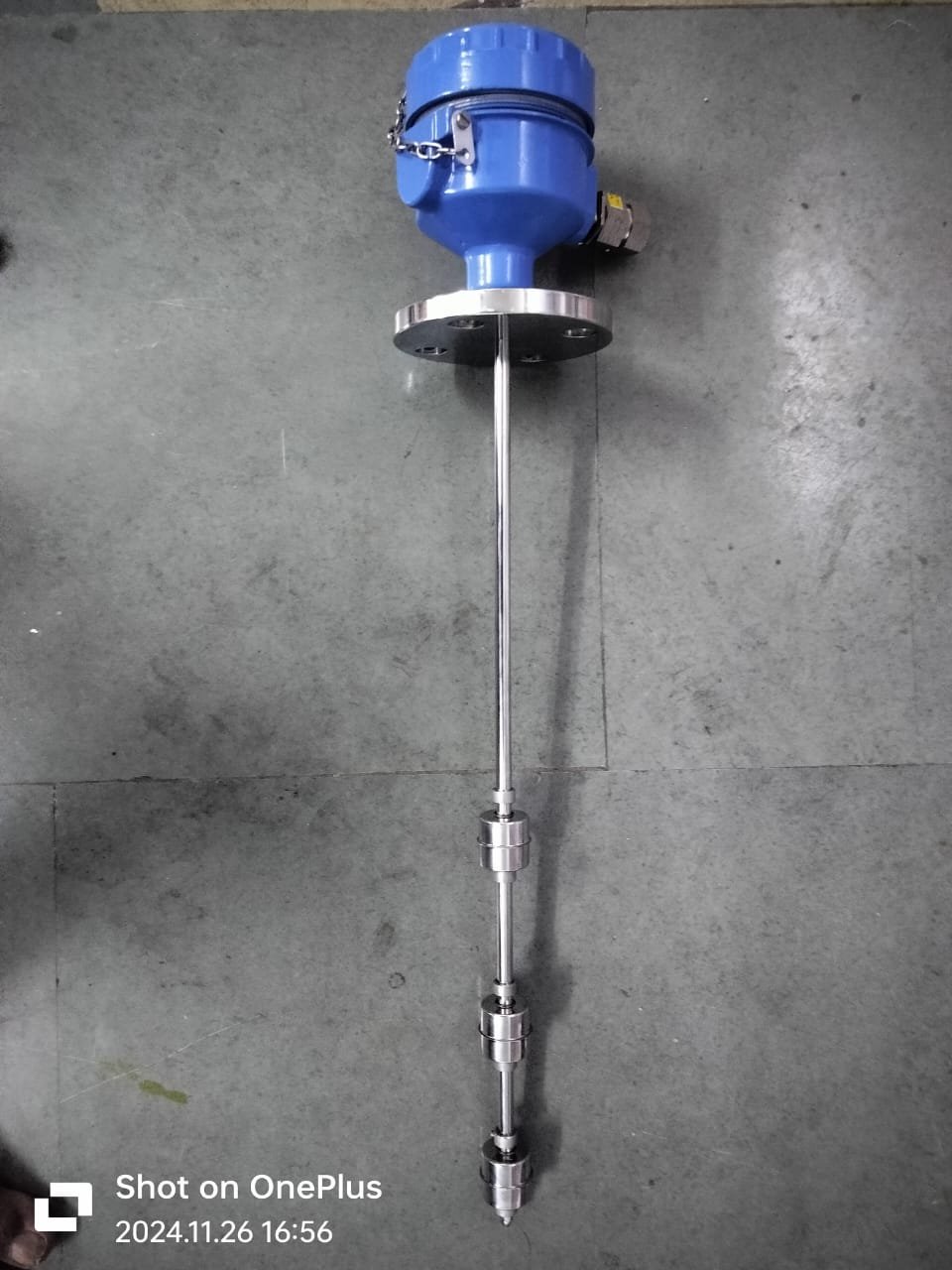

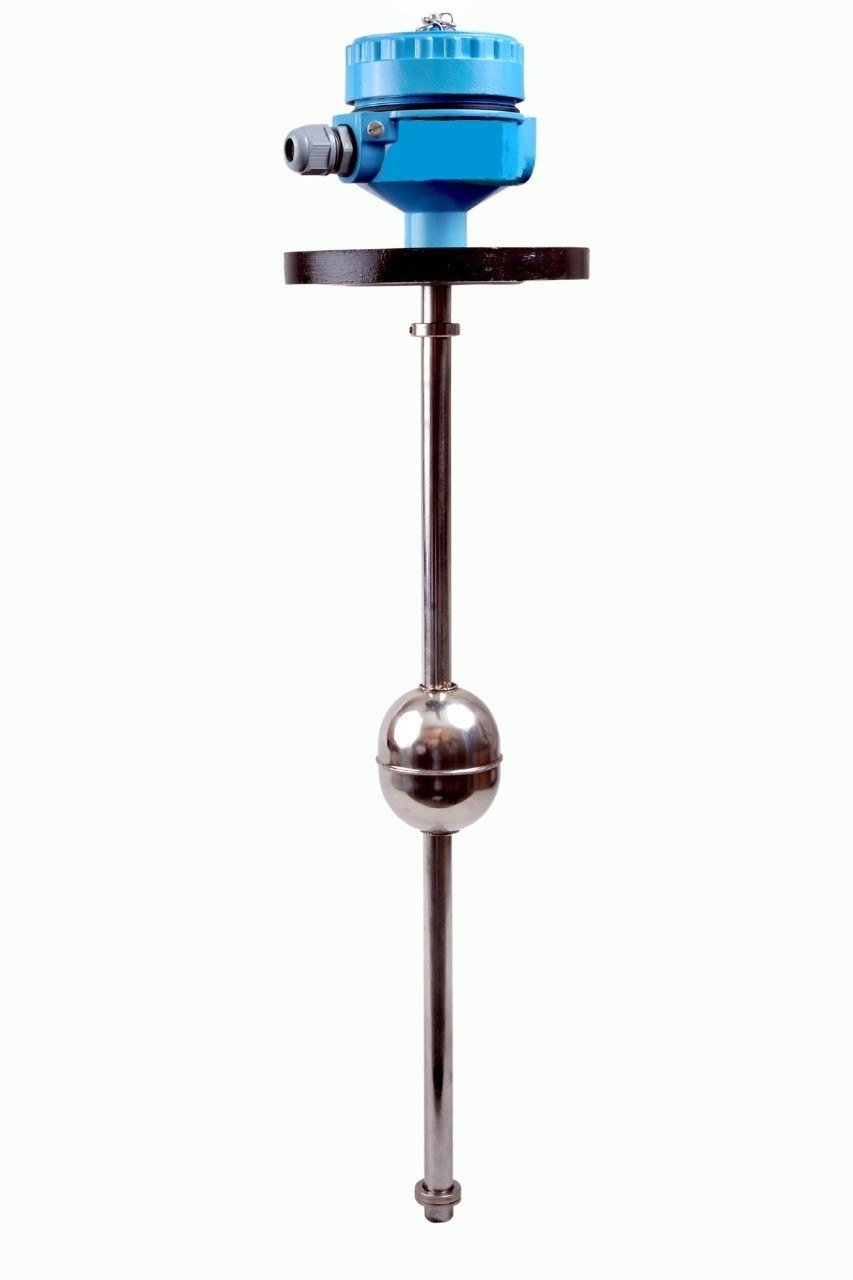

The MFLS-1300L is a multi-point magnetic float level switch that provides up to 6 independent switching levels along a single vertical guide stem for pump auto-start, auto-stop, low alarm, and high alarm control.

Up to 6 Independent Level Points Single Tank Top Entry Pump Auto-Start/Stop Logic Hermetically Sealed Contacts

Request Fast Quote Catalog Manual

Applications & Suitability

Pump Automation: Low level cut-off and high level pump start in sump and water tanks.

Chemical Storage Tanks: Multiple alarm thresholds (Low-Low, Low, High, High-High).

Cooling Towers & Boilers: Multi-stage water level control.

The MFLS-1300L is a reliable, maintenance-free level measurement solution for industrial process automation.

Model	MFLS-1300L
Switching Points	1 to 6 Points (Customizable elevations)
Switch Rating	SPST / SPDT Reed Switch (60W / 1A @ 230V AC)
Stem Length	Up to 3500 mm
Float Material	SS316 / Polypropylene (PP) / PVDF
Process Temperature	-20°C to +120°C
Process Connection	2" / 3" Flanged or 1.5" BSP Threaded
Enclosure	Cast Aluminium IP66 / Exd
