Minicap Capacitive Level Sensor

Made in India 100% Tested & Calibrated

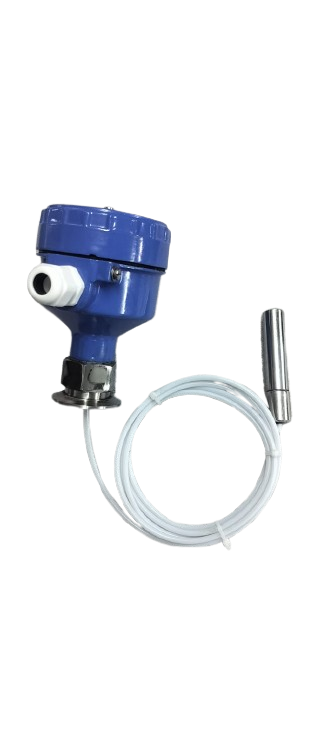

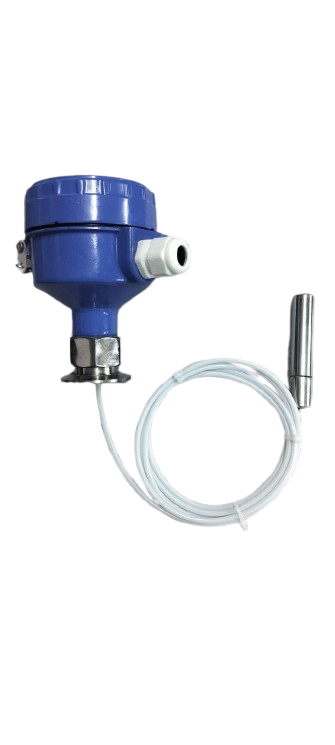

Model: MCLS-900L

The MCLS-900L is an ultra-compact tip-sensitive capacitive level sensor designed for space-constrained industrial machinery, lubrication tanks, chemical dosing systems, and semiconductor equipment.

Tip-Sensitive Capacitive Probe Miniature M18/M30 Thread Machinery Lubrication Tanks Fast Response

Request Fast Quote Catalog Manual

Applications & Suitability

Lube Oil Systems: Low oil alarm in machine tool lubrication reservoirs.

Chemical Dosing: Level detection in small reagent bottles and dosing vessels.

Semiconductor Equipment: High-purity chemical and DI water level monitoring.

The MCLS-900L is a reliable, maintenance-free level measurement solution for industrial process automation.

Model	MCLS-900L
Application Media	Oils, Coolants, Water, Reagents in Compact Tanks
Power Supply	10-30V DC (3-Wire)
Output	PNP / NPN Transistor (NO/NC Selectable)
Process Temperature	-20°C to +100°C
Process Connection	M18 x 1.5, M30 x 1.5, or 1/2" BSP Threaded
Enclosure	Stainless Steel / PBT IP67

Minicap Capacitive Level Sensor

Applications & Suitability

Features & Benefits

Working Principle of Minicap Capacitive Level Sensor

Technical Specifications - MCLS-900L
