Conductivity Level Switch (1/2/4 Channel)

Made in India 100% Tested & Calibrated

Model: CTLS-1700L

The CTLS-1700L is a multi-channel conductive electrode level controller for conductive liquids, water tanks, effluent treatment (ETP/STP), and multiple pump auto start/stop automation. Available with 1, 2, or 4 independent channels.

1 / 2 / 4 Channel Controller Conductive Liquids & Water Tanks Pump Auto Start/Stop Logic Low Voltage AC Sensing (No Electrolysis)

Request Fast Quote Catalog Manual

Applications & Suitability

Water & Wastewater Tanks: Pump start/stop automation in raw water, treated water, and effluent tanks.

Boiler Feedwater Tanks: Low water cut-off and feedwater pump control.

Chemical Neutralization: Conductive acid/alkali mixing and dosing tanks.

The CTLS-1700L is a reliable, maintenance-free level measurement solution for industrial process automation.

Model	CTLS-1700L
Channels	1 Channel, 2 Channel, or 4 Channel Independent Control
Application Media	Water, Effluent, Conductive Chemicals, Boiler Condensate
Sensitivity	Adjustable (1 kΩ to 100 kΩ)

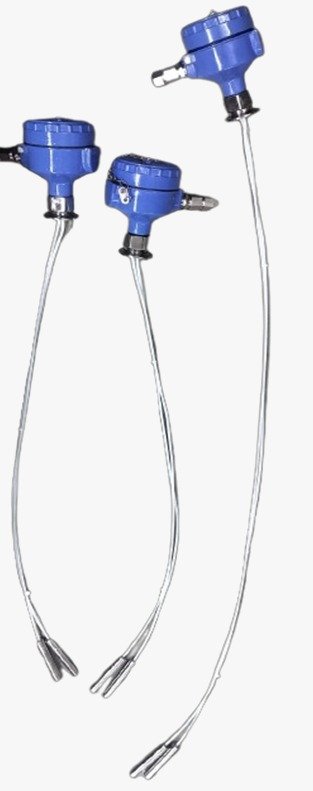

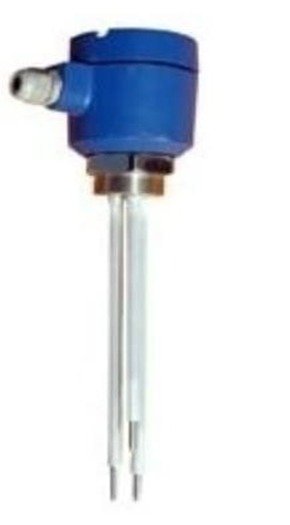

Electrode Probe Material	SS316 Stainless Steel Rods (PTFE Sleeved)
Power Supply	230V AC or 24V DC
Output	1 DPDT Relay per channel (5A @ 230V AC)

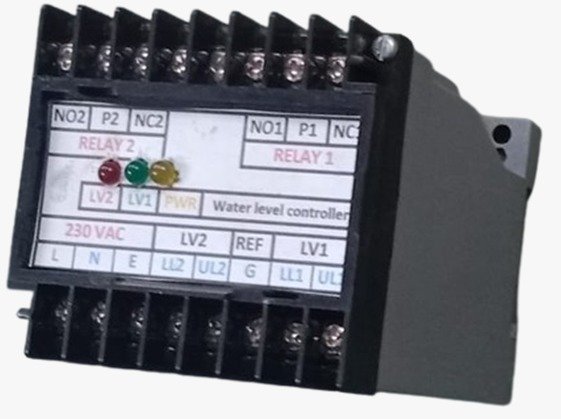

Mounting	DIN Rail Controller or IP65 Field Enclosure
